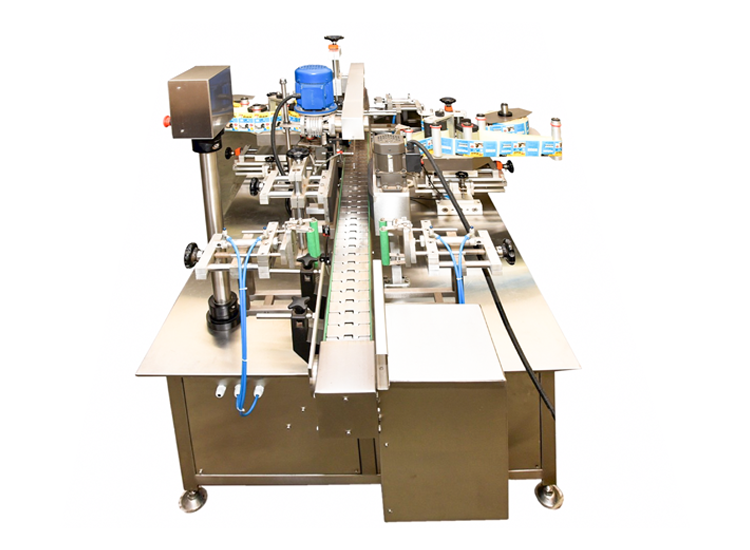

Auto Front & Back Sticker Labelling Machine Servo
Product Description:-
- Suitable for Flat Glass Bottles / PET Bottles / HDPE Bottles / Jerry Cans
- Cromo Paper Sticker Labels, Transparent Film Sticker Labels can be run on Machine
- Servo Motor Based 2 Numbers Label Dispenser
- Top Conveyor Belt with Individual Motor, Gear Box & VFD to hold the Bottles from Top
- In-Feed Belt based Feeder System for Alignment and Separating of Bottles
- In-Feed Worm Based Feeder System for Alignment and Separating of Bottles (Optional)
- Angular Dispenser Movement with Position Indicator
- Product Sensor to Detect the Obiect on which labels is going to apply
- Label Gap Sensor to Detect the Gap between two labels
- Very Rugged & Sturdy S.S Structure with MS Cladded Base Plate
- 7-inch Touch Screen HMI for easy operating of Machine
- Individual Motor, Gear Box & VFD for Conveyor
- Individual Motor, Gear Box & VFD for Bottle Separator Unit
- Separate Electrical Panel Box
- Stainless Steel Conveyor
- Very Easy & Quick Change Over for Different SKU
- Low Label Roll Alarm
- Maximum Label Roll OD: 305 mm
- Label Roll Core ID: 76 mm
- OUtPUt Speed Ranging from 2400 Bottles per Hour to 9000 bottles per Hour (Depending up on Bottle Shape & Size, Fill Volume and Machine Model)
- Toughened Glass or Polycarbonate Enclosure with Safety Interlocks with Sensors (Optional)
